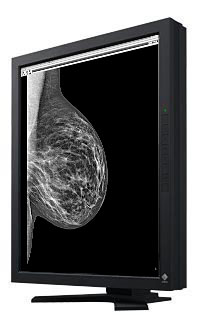

RadiForce G51



G51-BLG and G51-CLG are variation models of G51-BL and G51-CL with a distinctive glare panel to meet diversified environment usage. Designed specifically for the display of high-resolution grayscale images for digital mammography, DR and CR applications.
Certifications







Easier Observation of Calcifications with a Distinctive Glare Panel

Many current monitors use anti-glare panels which have a waffled surface to diffuse the reflection of surrounding light. However, this also diffuses the light from the monitor's backlight making the display look whitish and the image outline some what blurry causing a strain on the observer's eyes. With a distinctive glare panel, there is no diffused reflection by the waffled surface, and the outline of the image is displayed more clearly. Therefore, the subtle images such as calcification and masses will be easier to observe reducing the strain on the observer's eyes.
Please note that the reflection of surrounding light may increase when used in a bright environment.

Easier Observation of Calcifications with a Distinctive Glare Panel

..........................................................................................................

Improvement on MTF Characteristics

Improvement on MTF Characteristics

MTF (Modulation Transfer Function) is a parameter to define the display sharpness and resolution of a monitor panel. The distinctive glare panel has better MTF characteristics than the anti-glare panel. Meaning that the glare panel can be expected to display the outline of a detailed image sharper.





..........................................................................................................



10-Bit Simultaneous Grayscale Display

10-Bit Simultaneous Grayscale Display

An 11.5-bit look-up table produces a palette of 3,061 grayscale tones from which 1,024 (10-bit) tones can be displayed simultaneously, ensuring highly refined rendering of even extremely delicate grayscale shadings. EIZO also offers a selection of graphics boards with 10-bit output.
10-bit graphics board and 10-bit viewer software needed for 10-bit display.

..........................................................................................................

Blue Base and Clear Base Backlights

Blue Base and Clear Base Backlights

Available with either a blue base or clear base backlight.





..........................................................................................................



Pairing Monitors

Pairing Monitors

Effective when comparing medical images side by side, Radiologists often require multiple monitors to compare newly taken images and previous images for diagnosis. EIZO offers the same color and grayscale for two monitors bundled as a pair in one box.



..........................................................................................................

Backlight Saver

With ScreenManager Pro for Medical utility software installed, the Backlight Saver function allows for the monitor's backlight to turn off when the Screen-Saver activates and the monitor's backlight to turn on when the computer comes out of the Screen-Saver mode. This function helps to reduce power consumption when the monitor is used for a prolonged period of time.

Backlight Saver

..........................................................................................................

Quick and Easy Quality Control

Clip-On Swing Sensor G1

Once attached to the top of the monitor the Clip-On Swing Sensor G1 can remain in place and is ready for use. This saves the time and trouble of attaching and removing it when performing quality control tasks.
